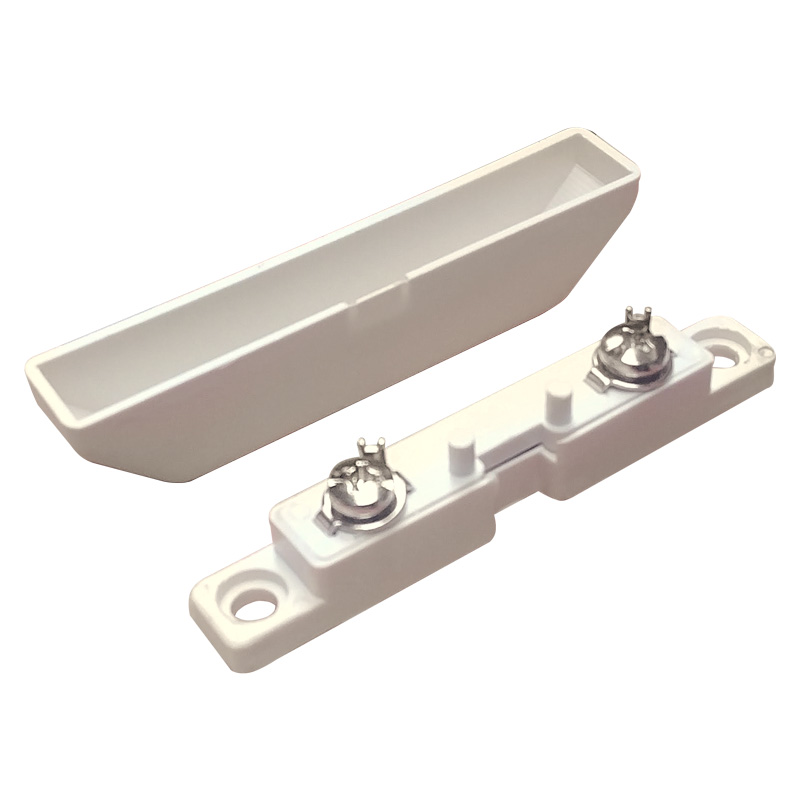

Indoor Hardwired Reed Switch (White)
SKU: RSW-P1
Available Now
$13.64
The RSW-P1 is a indoor hard wired reed switch, designed for window and door applications.
Product features:
- White indoor magnetic contact switch
- Magnet sensor gap, up to 19mm
- Normally Closed (when magnet away from reed switch)
- 3W maximum contact rating (up to 30V, 0.2A)
- Wide range 20~AWG, Ø0.81~0.51mm
- Surface Mounted, plastic construction
- Dimensions 65.5 x 13.6 x 11.1mm
Details
| Manufacturer | Watchguard |
|---|---|
| Supplier | RhinoCo.com.au |
| Weight | 0.22 |
| Dimensions | 0.030(W)x0.020(H)x0.090(D)m |
| Warranty | 1 |
| Category | Alarm Systems > Hardwired Alarm Accessories |
Specs
| Contact | N/C |
|---|---|
| Dimensions | 65.5mm x 13.6mm x 11.1mm |
| Gap | 19mm |
| Max Current | 0.2A |
| Max Rating | 3W |
| Max Voltage | 30VDC |
| Type | Reed Switch |
