Professional Series 5.0MP WDR Motorised HDCVI Bullet
SKU: VSCVI-5BIRMG2
Available Now
$208.18
With superior 80m infrared illumination, more than double Full HD resolution and ultra low light colour, the VSCVI-5BIRMG2 captures clear footage at all hours, featuring a motorized varifocal lens for easy remote image adjustment.
Camera features:
- Stream up to 5.0MP (2880 x 1620) at 25fps
- Motorised varifocal 2.7~13.5mm lens with motorised iris
- Large 1/2.7'' sensor for excellent low light performance
- Smart infrared illumination, up to 80m range
- HDCVI / AHD / Composite switchable via DIP switch
- Up to 700m video transmission over coaxial cable
- True WDR (120dB) and 3D noise reduction
- IP67 rated weather resistant metal housing
- Supports HDCVI, AHD, HDTVI & Composite video format modes

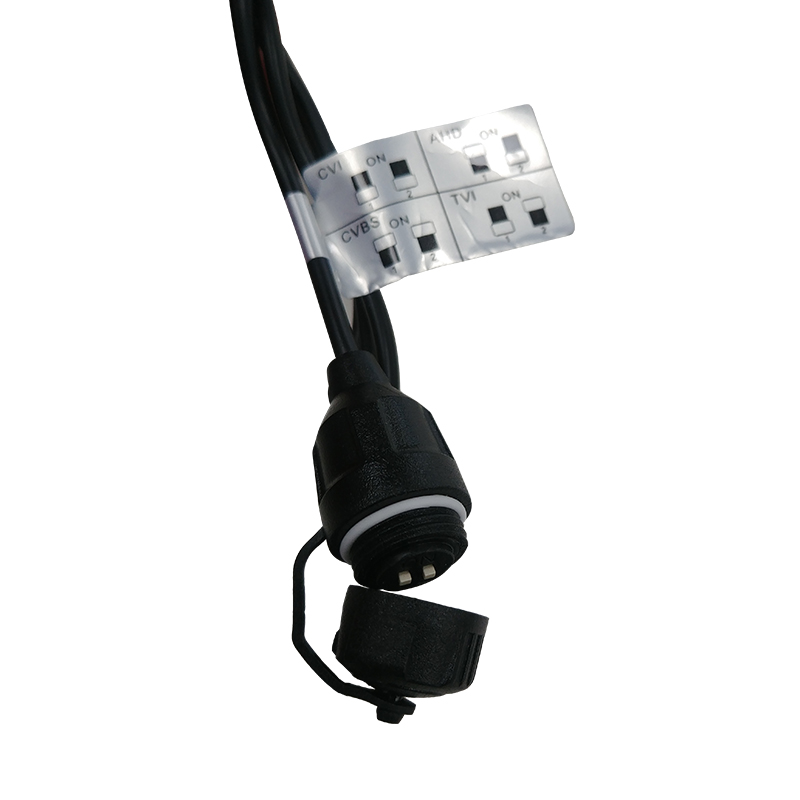

- Switch modes via DIP switches
Details
| Manufacturer | Securview Victory Series |
|---|---|
| Supplier | RhinoCo.com.au |
| Weight | 1 |
| Dimensions | 0.150(W)x0.140(H)x0.140(D)m |
| Warranty | 4 |
| Category | CCTV Surveillance Systems > HDCVI Surveillance Cameras |
Specs
| Alarm Interface | N/A |
|---|---|
| Angle of View | 113° (wide) ~ 31° (tele) |
| Audio Input | Built-in Microphone / 1 Input |
| Camera Type | Bullet |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 64m (wide) / 210m (tele) |
| Dimensions | 244.1mm x 90.4mm x 90.4mm |
| Effective Pixels | 2880 (H) x 1620 (V) |
| Electronic Shutter | 1/3 ~ 1/100,000s |
| Focus | Fixed / 0.8m Min. Focus Distance |
| Frame Rate | 25fps (5.0MP and lower) |
| Gain Control | Auto / Manual |
| Housing | Aluminium |
| Identify (250px/m) | 6.4m (wide) / 21m (tele) |
| Image Sensor | 1/2.7” 5.0 Megapixel CMOS |
| Infrared Range | 80m |
| Ingress Protection | IP67 |
| Lens | 2.7mm ~ 13.5mm F1.6 Motorised Lens, Fixed Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) / HLC-Pro |
| Max. Resolution | 5.0 Megapixel |
| Minimum Illumination | 0.001 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 3D |
| Observe (63px/m) | 25.6m (wide) / 84m (tele) |
| Operating Environment | -30° to 60°C / RH95% (max) |
| OSD Menu | Support |
| Power Consumption | < 12.5W |
| Power Input | 12VDC / 24VAC |
| Recognise (125px/m) | 12.8m (wide) / 42m (tele) |
| Resolution | 5.0MP (2880 x 1620) to 960H (960 x 576) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | No |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / CVBS / Composite video output |
| Weight | 0.79kg |
| White Balance | Auto / Manual |
