Residential 4 Button IP Intercom Door Station
SKU: INTIPDDS4W
Available Now
$286.36

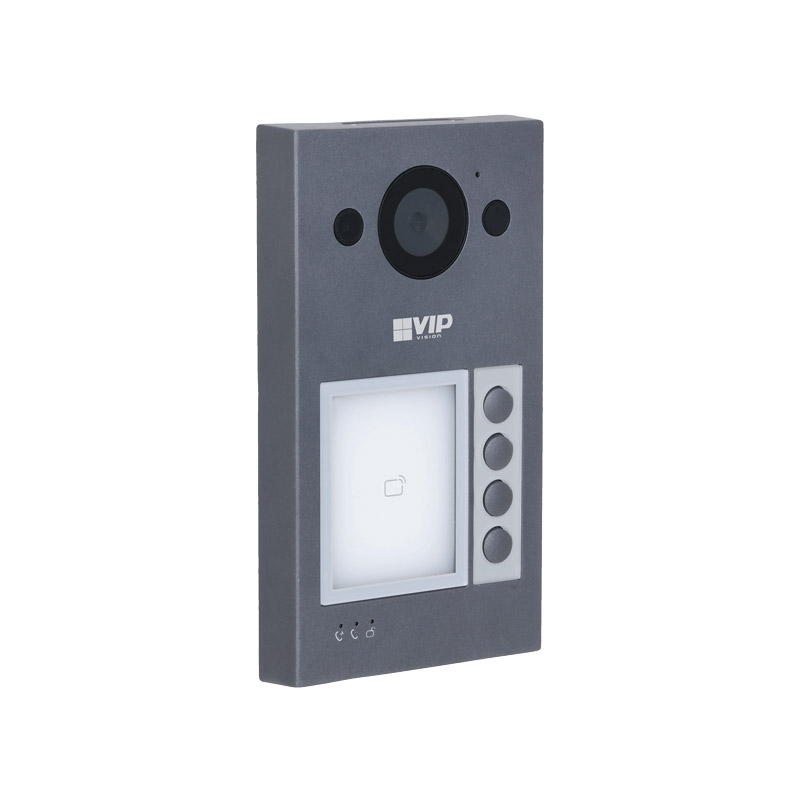

The INTIPDDS4W video intercom door station is ideal for homes and multi-premises buildings such as duplexes. The door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium body.
Product features:

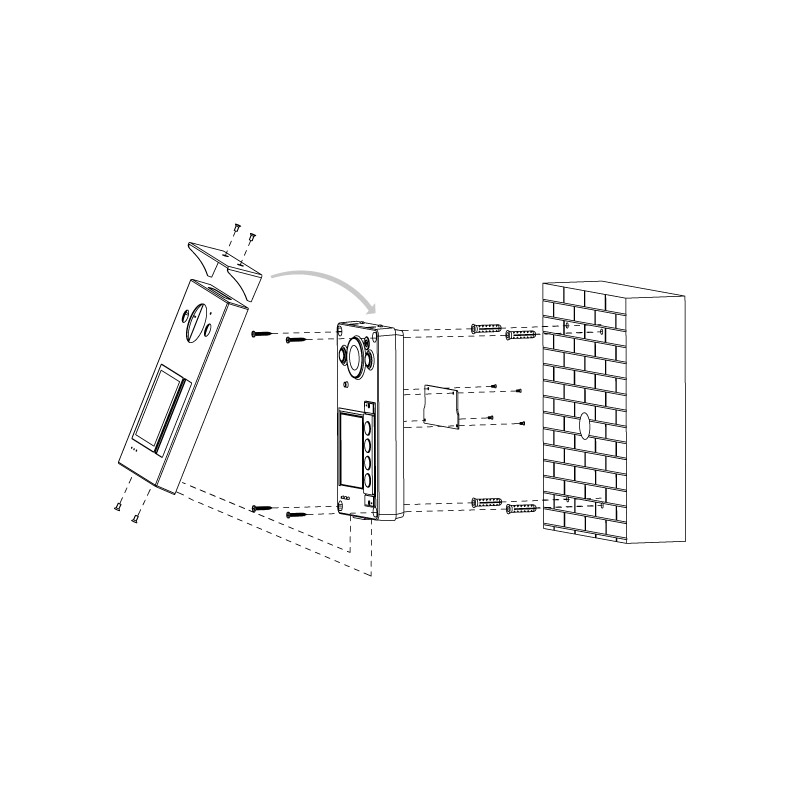

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather.
- 1/2.8’’ 2.0MP 1.9mm lens camera with 125° FOV
- Built-in microphone and speaker for 2-way talk
- Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
- Connect with intercom monitor(s) via Ethernet
- Door control, alarm and RS485 input/output relays
- Customise number of buttons to your needs; 1, 2 or 4 buttons
- Intuitive, easy-to-use interface
- Weather and vandal resistant IP65/IK08 aluminium body
- Power over Ethernet (12VDC, 802.3af)
- Includes a rain cover
Details
| Manufacturer | VIP Vision |
|---|---|
| Supplier | RhinoCo.com.au |
| Weight | 1 |
| Dimensions | 0.160(W)x0.060(H)x0.240(D)m |
| Warranty | 4 |
| Category | Intercom Systems > Residential Series |
Specs
| App Connection | QR Code |
|---|---|
| Audio / 2-Way Talk | Omni-directional Microphone & Embedded Loudspeaker for 2-way talk |
| Button Illumination | None |
| Camera System | 1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 125°) |
| Card Support | Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards |
| Category | Intercom Systems |
| Construction | Aluminium Alloy |
| Dimensions | 182 x 107 x 30mm |
| Ethernet / Network | 10M/100Mbps Self-adaptive / TCP/IP protocol |
| Ingress Protection | IP65 |
| Input / Output | 1 x relay for door control / 2 x channel alarm interface / 1 x RS485 |
| Installation Options | N/A |
| Internal MicroSD Slot | 256 GB |
| Keypad | 4 Mechanical Buttons |
| Low-Light Application | Day/Night ICR |
| Main Processor | Embedded Microprocessor |
| Max. Additional Door Stations | 20 |
| Max. Indoor Monitors | 44 (11 per button) |
| Power Consumption | Standby < 3W / Operation < 6 W |
| Power Input | 12VDC, PoE (802.3af) |
| Tamper Detection | Yes |
| Vandal Resistant | IK08 |
| Weight | 0.81kg |
